Ganter Normelemente , GN 603-78-M8-DSG GN 603-78-M8-DSG Thread M8 Pack of 2
4.8 (127 items)
Limited Time Sale$22.33 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215607382 | Release Date | 2026/04/12 | List Price | $14.89 | Model Number | 215607382 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Design and handling of the adjustable clamping levers GN 603 meet the requirements of the Ergostyle® product family. In addition, like all adjustable levers, they are preferably to be used when the clamping range is limited or a certain clamping position is desired. The threaded insert is detachably connected to the handle by a notch toothing. The release button allows effortless snap-out. However, this design is limited to applications where disassembly of the lever is not required when screwing in.
- Handle length: 78 mm; thread: M8

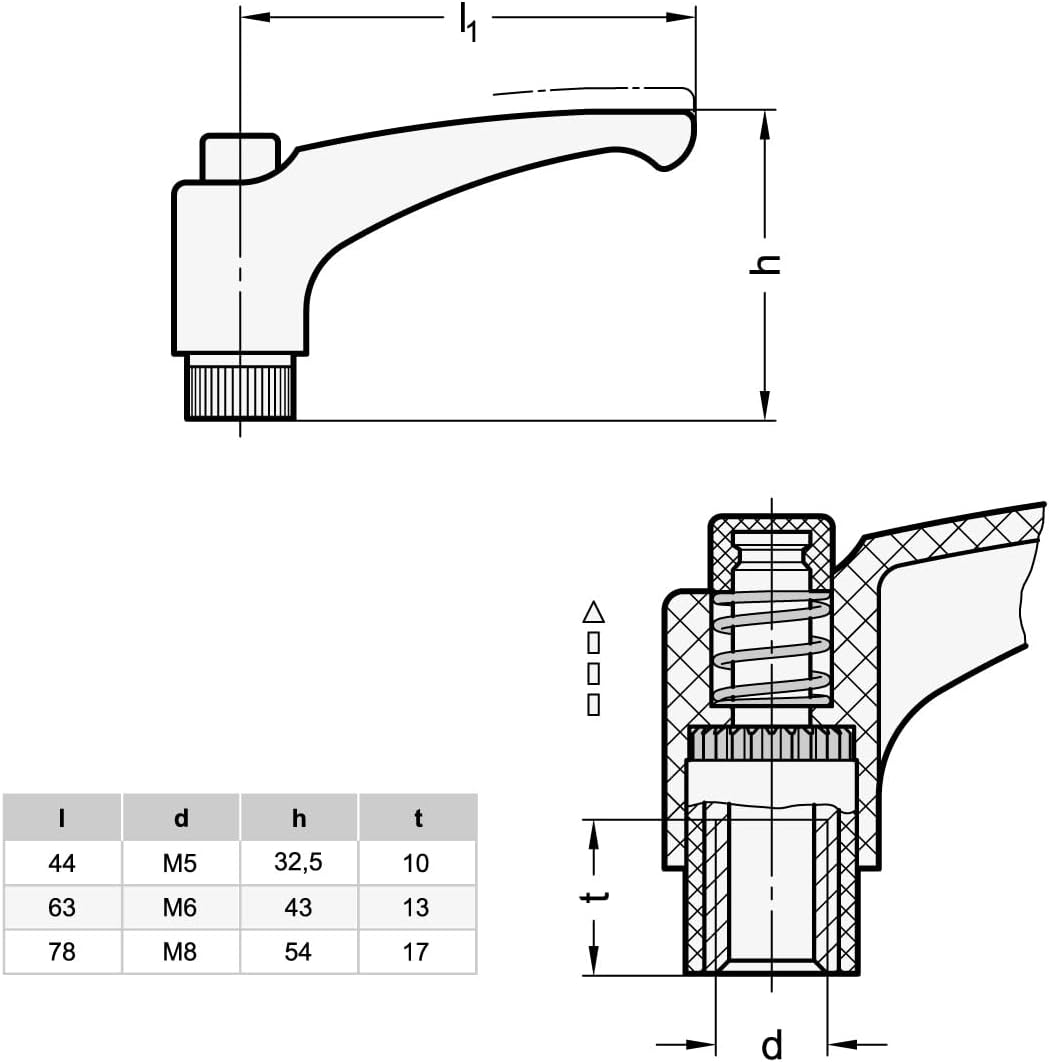

- The remaining dimensions can be found in the drawing
- With release button
- Threaded bushing brass
- Handle plastic, thermoplastic (polyamide PA)
| Color | Black |
|---|---|
| Shape | L-Shaped |
| Lock Type | Push Button Lock |
| Brand Name | Ganter Normelemente |
| Item Depth | 25mm |
| Metal Type | Brass |
| Style Name | Modern |
| Unit Count | 2.0 Count |
| Handle Type | Lever |
| Item Weight | 0.09 Kilograms |
| Finish Types | Unfinished |
| Manufacturer | Ganter Normelemente |
| Model Number | GN 603-78-M8-DSG |
| Material Type | Plastic |
| Item Type Name | Plastic clamping lever |
| Exterior Finish | Plastic |
| Handle Material | Brass |
| Number of Items | 2 |
| Hand Orientation | Ambidextrous |
| Included Components | Installation Hardware |
| Indoor Outdoor Usage | Indoor |
| Item Dimensions L x W | 3.64"L x 0.96"W |
