Fanmusic SMSL VMV D3R Decoder Flagship DAC Dual ROHM BD34302EKV PCM 78kHz DSD 512 with Remote Control

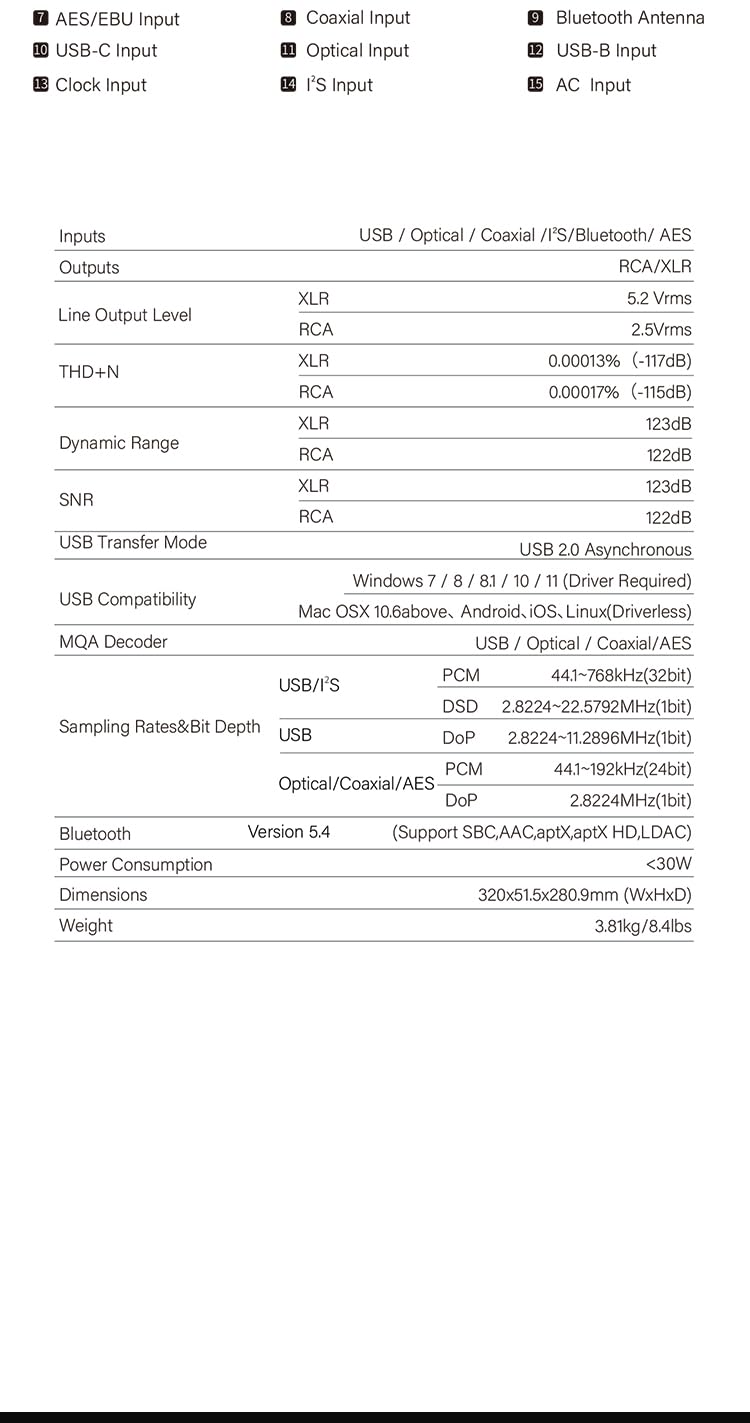

Specification: Inputs: USB/Optical /Coaxial /I²S/Bluetooth/AES Outputs: RCA/XLR Line Output Level: XLR 5.2Vrms RCA 2.5Vrms THD+N: XLR 0.00013%（-117dB) RCA 0.00017%（-115dB) Dynamic Range: XLR 123dB RCA 122dB SNR: XLR 123dB RCA 122dB USB Transfer Mode: USB 2.0 Asynchronous USB Compatibility: Windows 7 / 8/ 8.1/ 10/ 11(Driver Required) Mac OSX 10.6above、Android、i0S、Linux(Driverless) MQA Decoder: USB /Optical /Coaxial/AES Sampling Rates&Bit Depth: USB//²S: PCM 44.1~768kHz(32bit) DSD 2.8224~22.5792MHz(1bit) USB: DoP 2.8224~11.2896MHz(1bit) Optical/Coaxial/AES: PCM 44.1~192kHz(24bit) DoP 2.8224MHz(1bit) Bluetooth: Version 5.4 (Support SBC,AAC,aptX,aptX HD,LDAC) Power Consumption: <30W Dimensions: 320x51.5x280.9mm (WxHxD) Weight: 3.81kg/8.4lbs Package lists: USB cable, power cord, instruction manual, remote control, Bluetooth antenna

• VMV D3R Precision Architecture. The Art of Signal Purity. Every part of the circuit is designed for purity. Digital and analog sections are fully separated to avoid interference. Dual toroidal transformers provide stable power. The fully balanced design helps reduce noise and keeps even the smallest details intact.
• True Preamp Mode. Balanced Analog Volume Control. The VMV D3R is more than a DAC; it is a high-fidelity, fully balanced analog preamplifier. Full balanced signal path: From differential DAC output through analog volume control to XLR output, the entire chain maintains symmetrical balance, effectively canceling common-mode noise and delivering a deep, silent background.
• Wide Connectivity. Unlocking MQA and Ultra-High Resolution. Driven by the third-generation XMOS XU-316 processor, the D3R supports 32-bit depth, PCM up to 768kHz, and native DSD512. MQA Full Decoding: USB, Optical, Coaxial, and AES all support MQA/MQA-CD hardware decoding for studio-master quality. Universal Input: I2S supports native DSD, while Coaxial and Optical fully support the DoP64 protocol.
• New Ul, Intuitive Control. A redesigned interface for clarity and ease of use. The all-new visual interface enhances clarity and usability. It supports synchronized lyrics and track information display during Bluetooth playback. Effortless control, at a glance.
• Premium Components. High sound quality design, using two ROHM BD34302EKV decoding chip, THD+N as low as 0.00013%(-117 dB); Built-in fully balanced analog volume control circuit supports true PRE-AMP function; Built-in ±3ppb, 10MHz OCXO crystal oscillator; The self-developed CK-04 clock processing circuit greatly reduces the clock jitter.
